Multi Span Arch Frame Structure

Multi Span Arch Frame Structure

Product Overview

The Multi Span Arch Frame Structure is a three-part system consisting of main frame, secondary frame, and connectors. Built with hot-dip galvanized steel, it serves as a robust Greenhouse Load Bearing Structure for multi-span arched greenhouses. The full galvanized finish makes it a reliable Anti Corrosion Greenhouse Bracket with a service life of 15-20 years. Engineered as a versatile Multi Span Greenhouse Main Frame, it features integrated gutters for load-bearing and drainage. As a practical Durable Agricultural Frame Structure, it offers over 50% cost savings compared to glass multi-span greenhouses, making it ideal for large-scale vegetable and flower cultivation.

Technical Specifications

• Frame Composition: Three-part system - main frame, secondary frame, and connectors
• Main Frame Material: Hot-dip galvanized steel pipes for columns, arch tubes, and longitudinal braces
• Secondary Frame Material: Galvanized round or square steel for purlins, providing even support for film covering
• Connectors: Hot-dip galvanized channels, film clamps, and bolts for seamless assembly
• Service Life: 15-20 years with full hot-dip galvanizing corrosion protection
• Cost Efficiency: Over 50% lower cost compared to glass multi-span greenhouse frames

Key Features & Advantages

• Integrated Load-Bearing & Drainage: Multi-span arched greenhouses are connected via gutters that serve both as structural supports and drainage channels, effectively solving water accumulation problems in multi-span designs.
• Enhanced Roof Support: The secondary frame uses galvanized steel purlins horizontally fixed between arch tubes, reinforcing roof support and ensuring smooth, even film covering for maximum light transmission.
• Corrosion-Resistant Assembly: Hot-dip galvanized connectors (channels, film clamps, bolts) enable seamless assembly without welding points, preventing rust at connections and extending the frame's service life.
• Long-Lasting Durability: The full hot-dip galvanizing process provides comprehensive anti-corrosion protection, making it a high-performance Anti Corrosion Greenhouse Bracket with a 15-20 year service life.
• High Structural Stability: The mechanical design is optimized for multi-span spans, delivering excellent wind and snow load capacity, making it suitable for use in multiple climate regions.
• Significant Cost Savings: Compared to glass multi-span greenhouses, this frame reduces costs by over 50% with shorter construction cycles and easy maintenance, making it ideal for large-scale agricultural operations.

Step-by-Step Installation & Operation Guide

1. Project & Design Consultation: Discuss greenhouse specifications (span, height, number of bays) and environmental conditions to confirm the optimal multi-span arch frame design.
2. Main Frame Installation: Install the hot-dip galvanized steel columns, arch tubes, and longitudinal braces to form the primary Greenhouse Load Bearing Structure. Connect multi-span units with integrated gutters that provide both load-bearing and drainage functions.
3. Secondary Frame Assembly: Install the galvanized steel purlins horizontally between the arch tubes to enhance roof support and create a smooth surface for the film covering.
4. Connection System Setup: Use the hot-dip galvanized channels, film clamps, and bolts to assemble all components seamlessly, avoiding welding points that could rust.
5. Frame Calibration & Testing: Verify the structural integrity and alignment of the frame, checking the gutter system for proper drainage and the overall structure for wind and snow load capacity.
6. Film Cover Installation: Proceed with installing the plastic film covering, supported by the fully assembled Durable Agricultural Frame Structure.

Application Scenarios

• Large-scale commercial vegetable cultivation operations using multi-span film greenhouses
• Flower nurseries and ornamental plant production requiring cost-effective multi-span facilities
• Agricultural parks and demonstration farms showcasing modern, efficient farming practices
• Projects in regions with significant rainfall or snowfall requiring reliable drainage and structural support
• Beginner to intermediate agricultural operations seeking a balance of performance and affordability

Customer Benefits

• Significant Cost Savings: The frame reduces construction costs by over 50% compared to glass multi-span greenhouses, making it a highly affordable solution for large-scale operations.
• Long Service Life & Durability: The full hot-dip galvanizing process provides comprehensive corrosion protection, extending the frame's service life to 15-20 years with minimal maintenance.
• Enhanced Operational Efficiency: The integrated gutter system solves water accumulation problems, while the multi-span design maximizes land utilization for increased production capacity.
• Flexible Design Adaptability: The modular three-part system allows for customization to different spans, heights, and multi-span configurations, making it suitable for diverse project requirements.
• Reduced Maintenance Costs: The seamless assembly without welding points minimizes rust risks, and the standardized components allow for easy replacement, lowering long-term maintenance expenses.
• Versatile Crop Compatibility: The smooth film covering surface and controlled environment support a wide range of crops including vegetables, fruits, and flowers, adapting to diverse agricultural production needs.

Certifications & Compliance

This Multi Span Arch Frame Structure meets international agricultural construction standards, with the galvanized steel components complying with structural safety and corrosion resistance requirements. The frame design meets industry standards for wind and snow load capacity, and the integrated gutter system complies with drainage requirements for multi-span greenhouses. As a specialized Multi Span Greenhouse Main Frame, it is built to meet the diverse needs of modern agricultural operations worldwide.

Customization Options

• Custom frame dimensions and multi-span configurations based on specific greenhouse span, height, and bay requirements
• Enhanced galvanized finishes or additional coatings for extremely corrosive environments
• Specialized gutter designs optimized for high rainfall areas to improve drainage performance
• Frame designs optimized for specific regional wind and snow load conditions
• Layout configurations tailored to specific crop requirements and planting scales

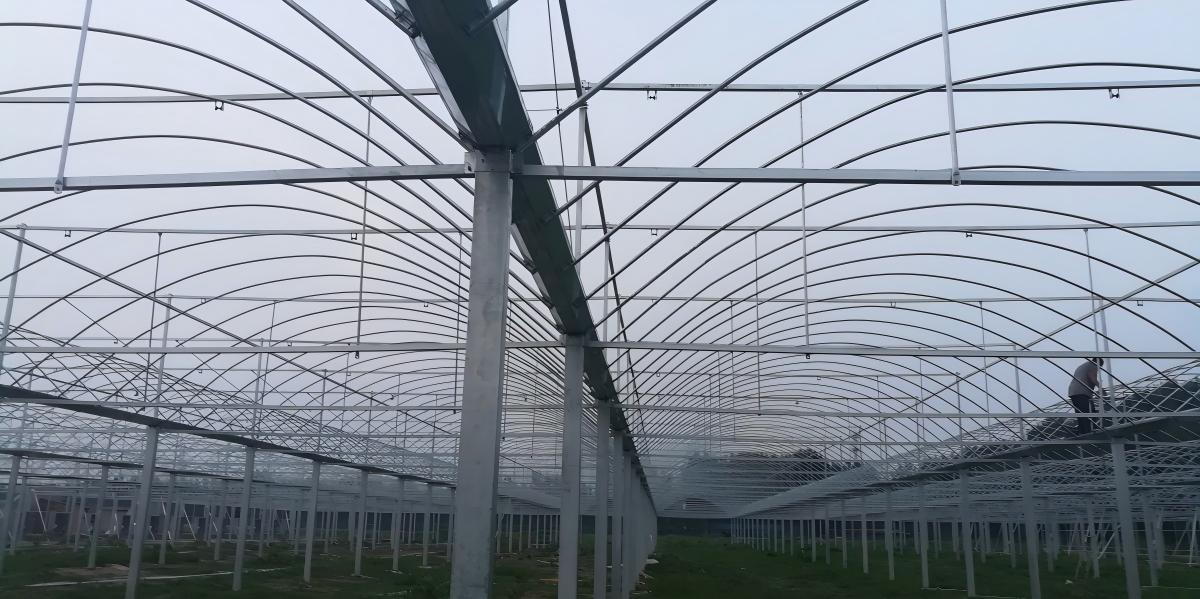

Production Process & Quality Control

Each frame component undergoes strict quality control during production. The steel materials are precision cut and formed, then fully hot-dip galvanized to ensure uniform corrosion protection. The main frame, secondary frame, and connectors are tested for compatibility, structural integrity, and corrosion resistance. The integrated gutter system is tested for drainage efficiency, and the complete frame assembly is verified for wind and snow load capacity before delivery.
