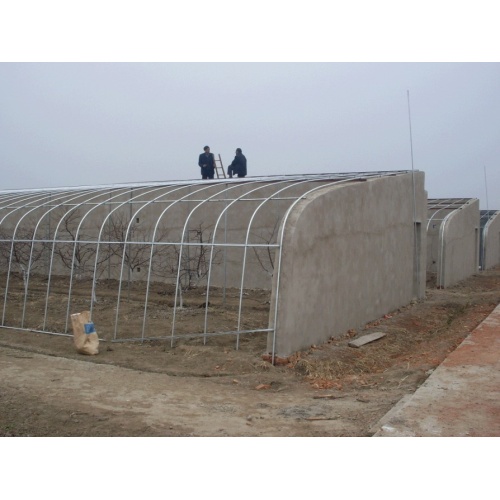

Sunlit Greenhouse Support Framework

Sunlit Greenhouse Support Framework

Product Overview

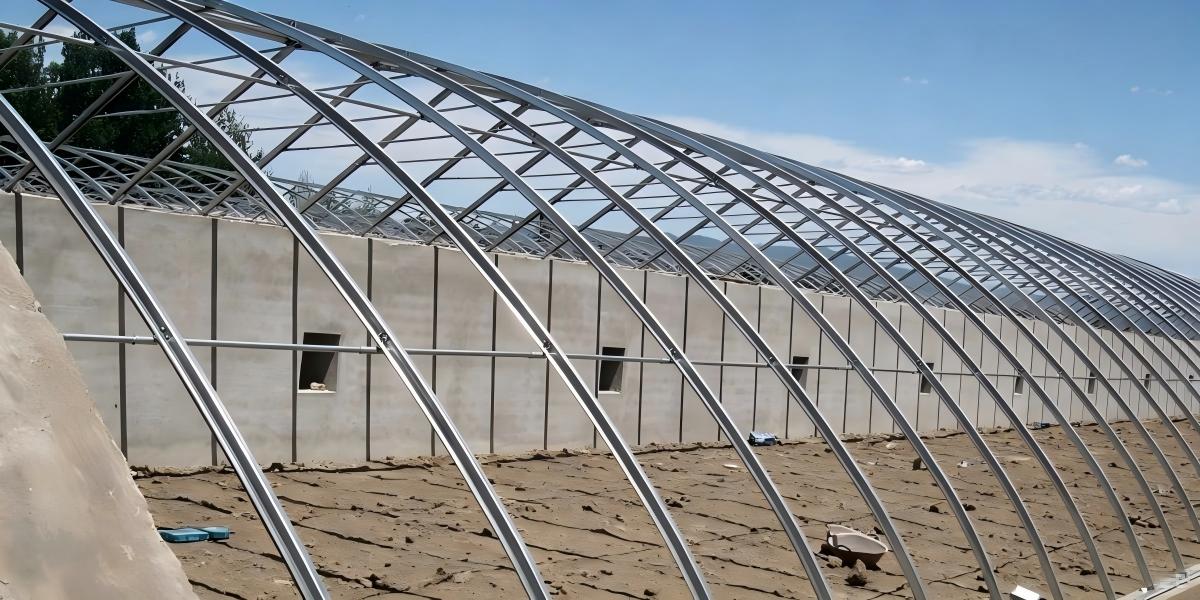

The Sunlit Greenhouse Support Framework is the core Greenhouse Load Bearing Structure of the sunlit greenhouse, specially designed for the single-slope lighting and north wall load-bearing characteristics. Composed of the main load-bearing frame, secondary frame, and connectors, it is a high-performance Anti Corrosion Greenhouse Bracket built with hot-dip galvanized materials. Engineered as a robust Multi Span Greenhouse Main Frame variant optimized for cold northern climates, it is a durable Durable Agricultural Frame Structure that ensures reliable performance through harsh winters. It maximizes solar energy utilization while providing excellent wind and snow load capacity for large-scale overwintering vegetable cultivation.

Technical Specifications

• Frame Composition: Three-part system - main load-bearing frame, secondary frame, and connectors
• Main Frame Material: Hot-dip galvanized steel pipes or Ω-shaped steel for rear wall columns, front roof arches, and longitudinal braces
• Secondary Frame Material: Galvanized square steel or angle steel purlins to support film or insulation blankets
• Connectors: Hot-dip galvanized bolts, channels, and film lines for secure, rust-free assembly
• Service Life: 15-20 years with full hot-dip galvanizing corrosion protection
• Adaptability: Optimized for cold northern climates with strong winds, sandstorms, and severe cold

Key Features & Advantages

• Climate-optimized Design: The main load-bearing frame uses hot-dip galvanized steel pipes with a scientifically calculated arch curvature that balances optimal lighting angles with superior snow load capacity, making it ideal for northern climates.
• Enhanced Roof Support: The secondary frame uses galvanized purlins fixed horizontally to the arches, supporting both film covering and insulation blankets while improving roof flatness and wind resistance.
• Rust-resistant Assembly System: Hot-dip galvanized connectors enable secure assembly without welding points, preventing rust at connections and extending service life even in harsh, sandy environments.
• Comprehensive Corrosion Protection: The full hot-dip galvanizing process provides excellent low-temperature resistance and anti-corrosion properties, making it a reliable Anti Corrosion Greenhouse Bracket with a 15-20 year service life.
• High Solar Energy Utilization: The customizable frame curvature matches different latitudes to maximize solar energy capture in winter, supporting the passive heating function of sunlit greenhouses.
• Cost-effective Solution: Compared to intelligent greenhouse frames, this framework offers lower construction costs, simple installation, and low maintenance, making it ideal for large-scale overwintering vegetable cultivation in northern regions.

Step-by-Step Installation & Operation Guide

1. Site & Climate Consultation: Discuss local latitude, winter conditions, and crop requirements to confirm the optimal frame curvature and structural specifications.
2. Main Frame Installation: Install the rear wall columns, front roof arches, and longitudinal braces using hot-dip galvanized steel pipes or Ω-shaped steel to form the primary Greenhouse Load Bearing Structure.
3. Secondary Frame Assembly: Install the galvanized purlins horizontally on the arches to provide support for the film covering and insulation blankets, enhancing roof flatness and wind resistance.
4. Connection System Setup: Use the hot-dip galvanized bolts, channels, and film lines to assemble all components securely, avoiding welding points that could rust.
5. Frame Calibration & Testing: Verify the structural integrity, arch curvature, and wind/snow load capacity of the frame, ensuring it meets the requirements for northern climate conditions.
6. Cover Installation: Proceed with installing the film covering and insulation blankets, supported by the fully assembled Durable Agricultural Frame Structure.

Application Scenarios

• Large-scale overwintering vegetable cultivation operations in cold northern regions
• Commercial farms and agricultural parks using sunlit greenhouses for year-round production
• Areas with strong winds, sandstorms, and severe cold requiring robust, corrosion-resistant frames
• Operations seeking to maximize solar energy utilization for passive heating in winter
• Beginner to intermediate agricultural operations seeking a cost-effective sunlit greenhouse solution

Customer Benefits

• Long Service Life & Durability: The full hot-dip galvanizing process provides comprehensive corrosion protection, extending the frame's service life to 15-20 years even in harsh northern climates.
• Enhanced Passive Heating: The customizable arch curvature maximizes solar energy capture in winter, improving the greenhouse's passive heating efficiency and reducing the need for additional heating.
• Improved Structural Stability: The scientifically calculated design provides excellent wind and snow load capacity, ensuring reliable protection for crops through harsh winters and storms.
• Reduced Maintenance Costs: The rust-resistant assembly system and standardized components minimize maintenance requirements, lowering long-term operational costs.
• Cost-effective Investment: The frame offers lower construction costs compared to intelligent greenhouse frames, with simple installation and low maintenance, making it a high-value solution for large-scale operations.
• Versatile Crop Compatibility: The frame supports both film covering and insulation blankets, meeting the diverse growing needs of vegetables, fruits, and other crops in overwintering production.

Certifications & Compliance

This Sunlit Greenhouse Support Framework meets international agricultural construction standards, with the galvanized steel components complying with structural safety and corrosion resistance requirements. The frame design meets industry standards for wind and snow load capacity in cold northern climates. As a specialized Greenhouse Load Bearing Structure for sunlit greenhouses, it is built to meet the diverse needs of modern agricultural operations worldwide.

Customization Options

• Custom arch curvature and frame dimensions based on specific latitude and solar radiation patterns
• Enhanced galvanized finishes or additional coatings for extremely corrosive environments
• Specialized designs optimized for specific regional wind, snow, and sandstorm conditions
• Modular layouts that allow for expansion or modification of the greenhouse structure
• Frame configurations tailored to specific crop requirements and planting scales

Production Process & Quality Control

Each frame component undergoes strict quality control during production. The steel materials are precision cut and formed, then fully hot-dip galvanized to ensure uniform corrosion protection. The main load-bearing frame, secondary frame, and connectors are tested for compatibility, structural integrity, and corrosion resistance. The complete frame assembly is verified for wind and snow load capacity before delivery.

Customer Testimonials

"The sunlit greenhouse support framework has been the backbone of our overwintering vegetable operation. The durable construction and corrosion resistance have kept our facility stable through harsh northern winters, making it a reliable Greenhouse Load Bearing Structure for our growing needs." — Commercial Farm Owner

"As a cost-effective Durable Agricultural Frame Structure, it has exceeded our expectations. The customizable arch curvature maximizes solar energy capture, and the rust-resistant assembly system requires minimal maintenance." — Agricultural Project Manager

"The frame's ability to withstand strong winds and sandstorms has been impressive. The hot-dip galvanized finish provides excellent protection, ensuring our crops are protected year after year." — Northern Climate Grower

FAQ

Q: How does the frame design optimize solar energy utilization?

A: The frame's arch curvature is customizable to match different latitudes, maximizing solar energy capture in winter. This improves the passive heating efficiency of the sunlit greenhouse, reducing the need for additional heating and supporting more effective overwintering production.

Q: Is the frame suitable for harsh northern climates?

A: Yes, the frame is specifically designed for northern climates with strong winds, sandstorms, and severe cold. The full hot-dip galvanizing process provides excellent corrosion protection, and the scientifically calculated design offers superior wind and snow load capacity.

Q: How does the three-part design improve performance?

A: The three-part system (main load-bearing frame, secondary frame, connectors) provides comprehensive structural support. The main frame handles primary loads, the secondary frame supports the covering materials, and the connectors enable rust-free assembly, enhancing overall durability and performance.

Q: What is the expected service life of the frame?

A: With proper maintenance, the frame provides a service life of 15-20 years, thanks to the full hot-dip galvanizing process that provides comprehensive anti-corrosion protection, making it a cost-effective long-term investment for agricultural operations.
