Gear Rack Shade Curtain System

Gear Rack Shade Curtain System

Product Overview

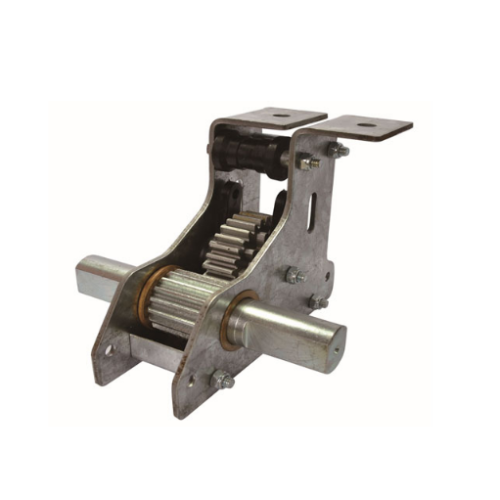

The Gear Rack Shade Curtain System is a core shading control device for intelligent greenhouses, specifically designed for large-scale facilities like glass and polycarbonate greenhouses. Composed of high-strength hot-dip galvanized gears, precision racks, reduction motors, and drive shafts, it forms a robust mechanical system with aluminum alloy curtain supports. The gear and rack components ensure efficient power transfer with 98% transmission efficiency. As reliable Greenhouse Drive System Components, they provide smooth, accurate curtain movement. The hot-dip galvanized parts function as long-lasting Durable Greenhouse Mechanical Parts that withstand humid greenhouse environments. The system is a versatile Agricultural Greenhouse Drive Accessories solution that supports both single-span and multi-span linked control for intelligent environmental management.

Technical Specifications

• Transmission Type Gear and rack drive system with hot-dip galvanized components
• Transmission Efficiency Up to 98% for optimal power transfer
• Control Accuracy Curtain opening/closing error ≤5mm for precise shading control
• Corrosion Protection Hot-dip galvanized treatment for resistance to high humidity environments
• Service Life Over 15 years with proper maintenance
• Applications Glass greenhouses, polycarbonate greenhouses, and other large-scale facilities

Key Features & Advantages

• Precise Shading Control The motor-driven gear and rack meshing transmission ensures curtain opening and closing errors of ≤5mm, allowing for highly accurate control of shading rates to meet specific crop light requirements.
• Long-Term Durability All key components undergo hot-dip galvanized anti-corrosion treatment, enabling them to withstand the humid greenhouse environment. This results in a service life exceeding 15 years with minimal maintenance requirements.
• Versatile Compatibility The system supports both single-span and multi-span linked control, making it suitable for various greenhouse configurations. It can be paired with different curtain materials including shade nets and insulation cotton to meet diverse planting needs.
• High Efficiency Operation The gear and rack drive system achieves 98% transmission efficiency, ensuring smooth, reliable curtain movement with minimal power loss, optimizing energy usage for the greenhouse.
• Enhanced Environmental Management The precise control capabilities of the system help create optimal growing conditions for different crops, supporting the intelligent management of the greenhouse environment and improving overall productivity.
• Adaptable to Large-Scale Facilities The system is specifically designed for large-scale glass and polycarbonate greenhouses, providing the structural stability and performance required for these expansive operations.

Step-by-Step Installation & Operation Guide

1. Greenhouse Consultation & Design Discuss greenhouse specifications, crop requirements, and environmental conditions to determine the optimal system configuration and control needs.
2. Component Preparation Prepare the high-strength hot-dip galvanized gears, precision racks, reduction motors, drive shafts, and aluminum alloy curtain supports according to the system design.

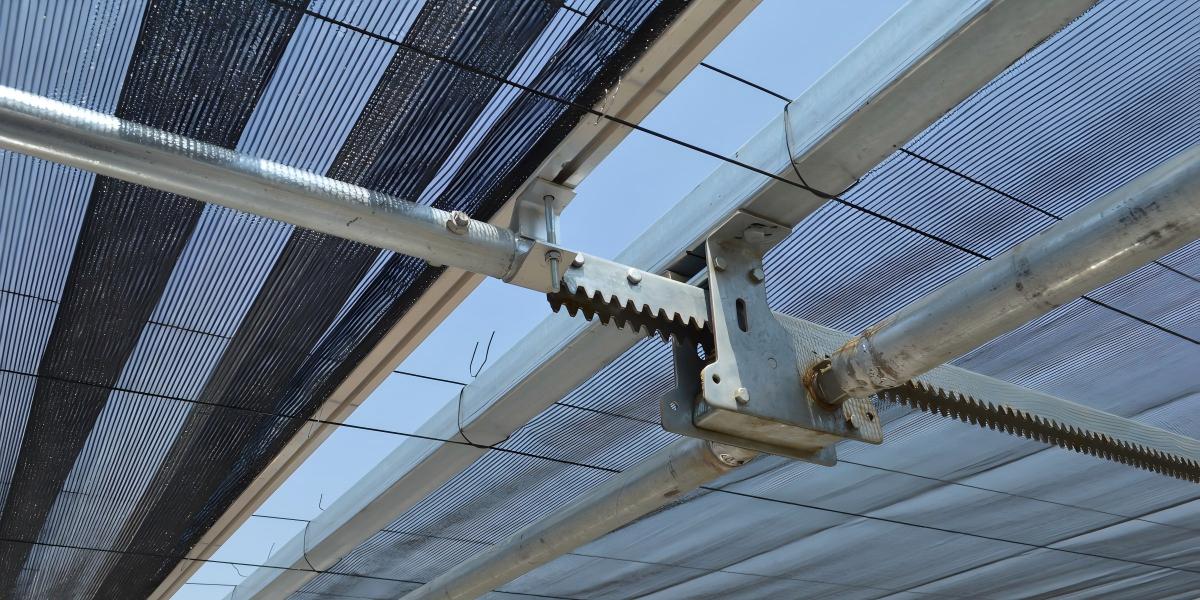

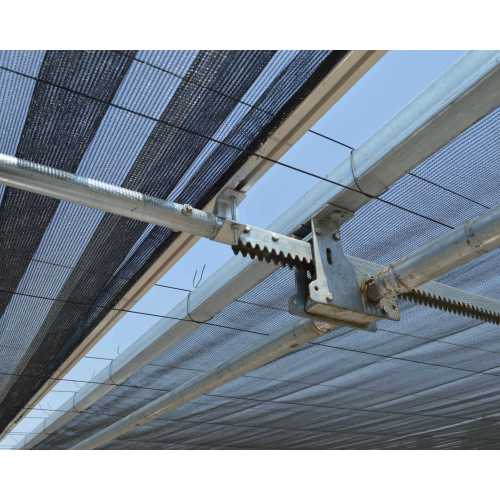

3. Mechanical Assembly Install the gears and racks throughout the greenhouse, ensuring proper alignment and engagement. Connect the reduction motors and drive shafts as core Greenhouse Gear and Rack Parts.

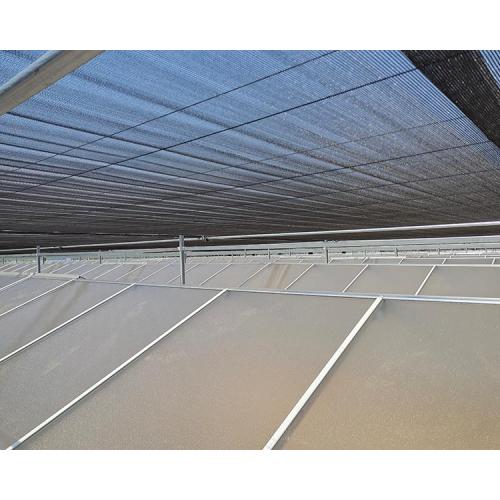

4. Curtain Installation Attach the curtain material (shade net or insulation cotton) to the aluminum alloy supports, ensuring proper tension and alignment with the drive system.
5. System Calibration Calibrate the gear and rack system to achieve precise curtain movement with errors ≤5mm, testing the response and accuracy of the shading control.
6. Operational Testing Test the complete system under various conditions to verify its ability to control shading accurately, making adjustments as needed to ensure optimal performance.

Application Scenarios

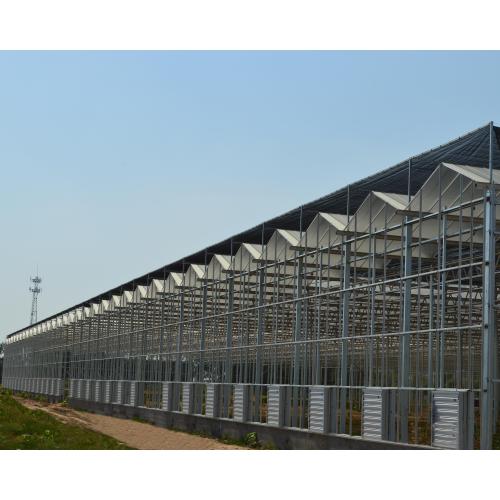

• Large-scale glass and polycarbonate greenhouses requiring precise environmental control
• Commercial flower and vegetable operations with specific light and temperature requirements
• Seedling facilities needing consistent, controlled conditions for young plants
• Intelligent greenhouse projects prioritizing automation and efficient resource management
• Operations in humid environments requiring corrosion-resistant components for long-term reliability

Customer Benefits

• Improved Crop Quality and Yield The precise shading control creates optimal growing conditions for different crops, helping to maximize yields and improve the quality of flowers, vegetables, and seedlings.
• Long-Term Durability and Low Maintenance The hot-dip galvanized components ensure reliable performance for over 15 years with minimal maintenance requirements, reducing operational costs over the long term.
• Flexible Environmental Control The system supports both shade and insulation functions, allowing it to adapt to changing environmental conditions throughout the year and meet diverse planting needs.
• Enhanced Operational Efficiency The 98% transmission efficiency ensures optimal power usage, while the precise control capabilities help reduce waste and improve the overall efficiency of the greenhouse operation.
• Scalable and Versatile Design The system supports both single-span and multi-span linked control, making it suitable for small-scale operations and large commercial facilities alike, with the ability to expand as needed.
• Integration with Smart Greenhouse Systems The precise control capabilities make the system compatible with intelligent greenhouse management systems, supporting automation and data-driven environmental control.

Certifications & Compliance

This Gear Rack Shade Curtain System meets international agricultural equipment standards, with the gear and rack components complying with mechanical safety and performance requirements. The hot-dip galvanized parts meet industry standards for corrosion resistance, and the system is designed to operate efficiently in humid greenhouse environments. As specialized Agricultural Greenhouse Drive Accessories, it is built to provide reliable environmental control for modern large-scale greenhouse operations worldwide.

Customization Options

• Custom system configurations based on specific greenhouse size and layout requirements
• Specialized curtain materials with different shading rates and thermal properties
• Enhanced gear and rack systems for large-scale or heavy-duty applications
• Automated control options for integration with smart greenhouse management systems
• Modular designs that allow for expansion or modification of the shading system

Production Process & Quality Control

Each component of the Gear Rack Shade Curtain System undergoes strict quality control during production. The gears and racks are precision manufactured and hot-dip galvanized to ensure corrosion resistance and dimensional accuracy. The reduction motors are calibrated for smooth, efficient operation. The complete system is assembled and tested to ensure proper alignment and function before delivery.

Customer Testimonials

"The gear rack shade curtain system has been a cornerstone of our intelligent greenhouse operation. The precise control capabilities have significantly improved our crop yields, and the durable construction has required minimal maintenance over the years." — Commercial Greenhouse Operator

"As reliable Greenhouse Gear and Rack Parts, the system has exceeded our expectations. The 98% transmission efficiency ensures smooth operation, and the corrosion-resistant components have held up perfectly in our humid greenhouse environment." — Agricultural Project Manager

"The versatility of the system has been impressive. It works seamlessly with both our shade nets and insulation cotton, allowing us to adapt to different environmental conditions throughout the year." — Large-Scale Grower

FAQ

Q: How does the gear and rack system provide precise shading control?

A: The system uses a motor-driven gear and rack meshing transmission to move the curtain, resulting in opening and closing errors of ≤5mm. This allows for highly accurate control of shading rates, creating optimal light conditions for specific crops.

Q: What makes the system durable and suitable for humid environments?

A: All key components undergo hot-dip galvanized anti-corrosion treatment, enabling them to withstand the humid greenhouse environment. This results in a service life exceeding 15 years with minimal maintenance requirements.

Q: Can the system be used with different curtain materials?

A: Yes, the system is compatible with various curtain materials including shade nets and insulation cotton, allowing it to serve both light control and thermal management functions to meet diverse planting needs.

Q: Is the system suitable for different greenhouse configurations?

A: Yes, the system supports both single-span and multi-span linked control, making it suitable for various greenhouse configurations including large-scale glass and polycarbonate facilities.
