Product Overview

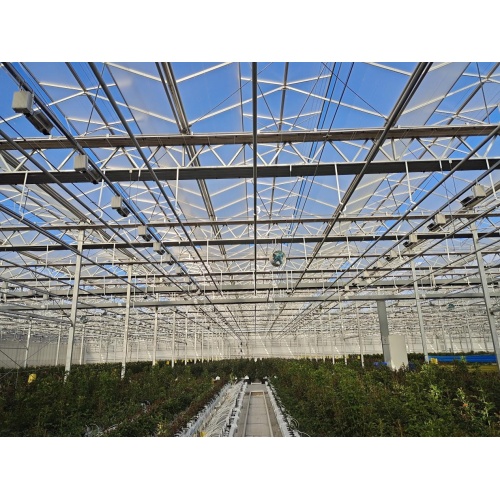

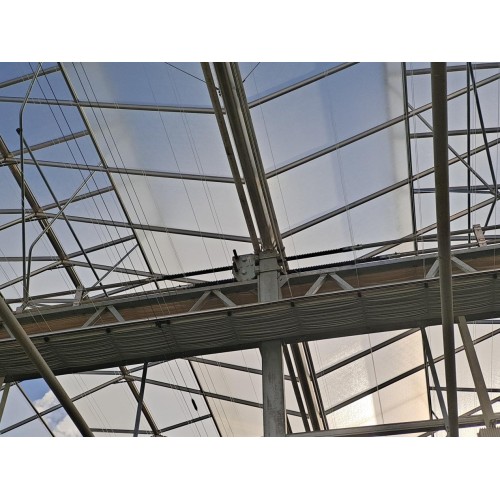

The Continuous Window Opening System, also known as the Double-Sided Butterfly Continuous Window System, is a core ventilation equipment for multi-span greenhouses, designed for high-efficiency air exchange in large-span facilities. The system consists of hot-dip galvanized drive gears and racks, butterfly-shaped window fans, reduction motors, and linkages. The symmetrically distributed windows on both sides of the greenhouse ridge can be infinitely adjusted from 0° to 50°. As robust Greenhouse Drive System Components, the gear and rack parts ensure smooth, reliable operation. The hot-dip galvanized components function as durable Durable Greenhouse Mechanical Parts that withstand humid environments. As specialized Greenhouse Gear and Rack Parts, they enable precise, synchronized window movement. The system is a versatile Agricultural Greenhouse Drive Accessories solution that supports intelligent environmental control in modern greenhouses.

Technical Specifications

• Transmission Type Hot-dip galvanized gear and rack drive system
• Window Configuration Symmetric butterfly-shaped windows on both sides of the greenhouse ridge
• Opening Range Infinitely adjustable from 0° to 50°
• Ventilation Efficiency 50% improvement over traditional single-side opening systems
• Corrosion Protection Hot-dip galvanized treatment for resistance to high humidity environments
• Applications Multi-span and large-span commercial greenhouses

Key Features & Advantages

• Enhanced Ventilation Efficiency The double-sided synchronous opening design creates a through-flow convection channel, increasing air exchange rates by over 50% compared to traditional single-side opening systems. This allows for rapid removal of high-temperature, high-humidity air, reducing the risk of crop diseases.
• Precise Adjustable Control The infinitely adjustable opening range (0°-50°) allows for precise control of ventilation rates, enabling the system to adapt to different environmental conditions and crop needs throughout the growing season.
• Low Maintenance Requirements The drive components undergo hot-dip galvanized anti-corrosion treatment, enabling them to withstand the humid greenhouse environment. This results in low failure rates and minimal maintenance requirements, reducing long-term operational costs.
• Intelligent Environmental Control The system supports integration with smart greenhouse management systems, allowing for automated ventilation control based on temperature and humidity sensors, contributing to more efficient and sustainable greenhouse operations.
• Adaptable to Different Scenarios The versatile system can be configured to meet the control needs of different planting scenarios, supporting diverse crop types and growing conditions.
• Scalable for Large-Scale Operations The system is specifically designed for large-span and multi-span greenhouses, providing the ventilation capacity required for these expansive commercial agricultural operations.

Step-by-Step Installation & Operation Guide

1. Greenhouse Consultation & Design Discuss greenhouse specifications, planting layout, and ventilation requirements to determine the optimal system configuration and window arrangement.
2. Component Preparation Prepare the hot-dip galvanized drive gears and racks, butterfly-shaped window fans, reduction motors, and linkages according to the system design.

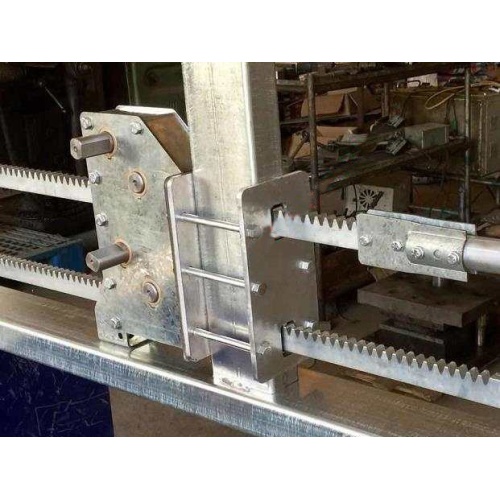

3. Transmission System Installation Install the gear and rack components along the greenhouse ridge, ensuring proper alignment and engagement as core Greenhouse Gear and Rack Parts.
4. Window Installation Attach the butterfly-shaped windows to the drive system, ensuring they are symmetrically distributed on both sides of the ridge and properly balanced for smooth opening and closing.
5. System Calibration Calibrate the gear and rack system to ensure the double-sided windows open and close in a synchronized manner, with the full range of adjustment from 0° to 50°.
6. Operational Testing Test the complete system under various conditions to verify its ventilation efficiency and reliability, making adjustments as needed to ensure optimal performance.

Application Scenarios

• Large-span and multi-span commercial greenhouses requiring high-efficiency ventilation
• Agricultural operations growing crops that are sensitive to high humidity and temperature
• Greenhouses in regions with high summer temperatures and humidity levels
• Intelligent greenhouse projects prioritizing automated environmental control systems
• Modern greenhouse operations seeking to reduce disease risks through improved ventilation

Customer Benefits

• Improved Crop Health and Yield The enhanced ventilation efficiency helps maintain optimal temperature and humidity levels, reducing the risk of crop diseases caused by dampness and heat stress, resulting in healthier plants and higher yields.
• Flexible Environmental Control The infinitely adjustable opening range allows for precise control of ventilation rates, enabling the system to adapt to changing environmental conditions throughout the growing season and meet diverse crop needs.
• Long-Term Durability and Low Maintenance The hot-dip galvanized drive components ensure reliable performance in humid environments with minimal maintenance requirements, reducing operational costs over the long term.
• Enhanced Operational Efficiency The system supports integration with smart greenhouse management systems, allowing for automated ventilation control that optimizes resource usage and reduces labor requirements.
• Scalable and Versatile Design The system is specifically designed for large-span and multi-span greenhouses, making it suitable for commercial agricultural operations of various sizes, with the ability to expand as needed.
• Reduced Environmental Impact The effective ventilation provided by the system helps reduce the need for mechanical cooling systems, lowering energy consumption and contributing to more sustainable greenhouse operations.

Certifications & Compliance

This Continuous Window Opening System meets international agricultural equipment standards, with the gear and rack components complying with mechanical safety and performance requirements. The hot-dip galvanized parts meet industry standards for corrosion resistance, and the system is designed to operate efficiently in humid greenhouse environments. As specialized Agricultural Greenhouse Drive Accessories, it is built to provide reliable ventilation control for modern large-scale greenhouse operations worldwide.

Customization Options

• Custom system configurations based on specific greenhouse size and layout requirements
• Specialized window designs optimized for specific ventilation needs or climate conditions
• Enhanced gear and rack systems for large-scale or heavy-duty applications
• Automated control options for integration with smart greenhouse management systems
• Modular designs that allow for expansion or modification of the ventilation system

Production Process & Quality Control

Each component of the Continuous Window Opening System undergoes strict quality control during production. The gear and rack parts are precision manufactured and hot-dip galvanized to ensure corrosion resistance and dimensional accuracy. The reduction motors are calibrated for smooth, efficient operation. The complete system is assembled and tested to ensure proper alignment and function before delivery.

Customer Testimonials

"The continuous window opening system has transformed the ventilation capabilities of our multi-span greenhouse. The 50% improvement in air exchange rates has significantly reduced our crop disease issues and improved overall plant health." — Commercial Greenhouse Operator

"As reliable Greenhouse Drive System Components, the system has exceeded our expectations. The gear and rack drive provides smooth, synchronized operation, and the corrosion-resistant components have held up perfectly in our humid greenhouse environment." — Agricultural Project Manager

"The system's ability to precisely control ventilation rates has allowed us to create optimal growing conditions for different crops throughout the year, resulting in higher quality produce and increased yields for our operation." — Large-Scale Grower

FAQ

Q: How does the double-sided synchronous opening design improve ventilation efficiency?

A: The double-sided synchronous opening creates a through-flow convection channel, increasing air exchange rates by over 50% compared to traditional single-side opening systems. This allows for rapid removal of high-temperature, high-humidity air from the greenhouse.

Q: What makes the system suitable for humid greenhouse environments?

A: All drive components undergo hot-dip galvanized anti-corrosion treatment, enabling them to withstand the humid greenhouse environment. This results in low failure rates and minimal maintenance requirements, ensuring reliable long-term operation.

Q: Can the system be integrated with smart greenhouse management systems?

A: Yes, the system supports integration with smart greenhouse management systems, allowing for automated ventilation control based on temperature and humidity sensors, contributing to more efficient and sustainable greenhouse operations.

Q: Is the system adjustable to meet different ventilation needs?

A: Yes, the system features an infinitely adjustable opening range from 0° to 50°, allowing for precise control of ventilation rates to meet diverse crop needs and changing environmental conditions throughout the growing season.
