Side Tilting Window System

Side Tilting Window System

Product Overview

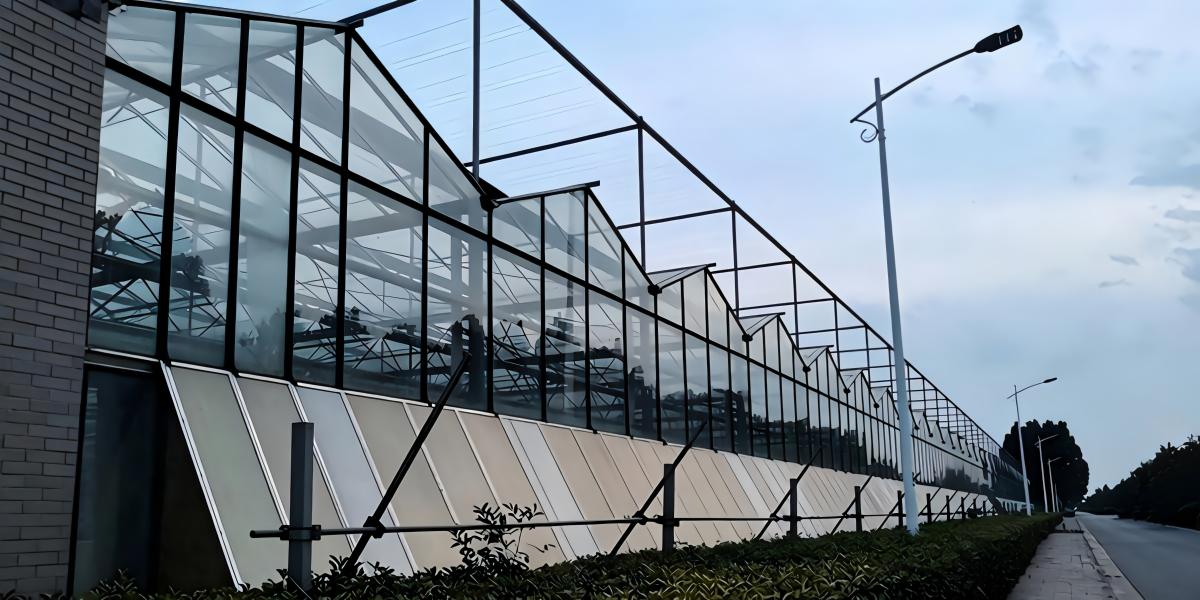

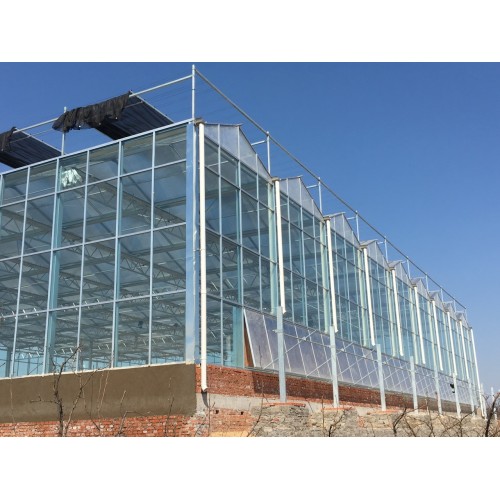

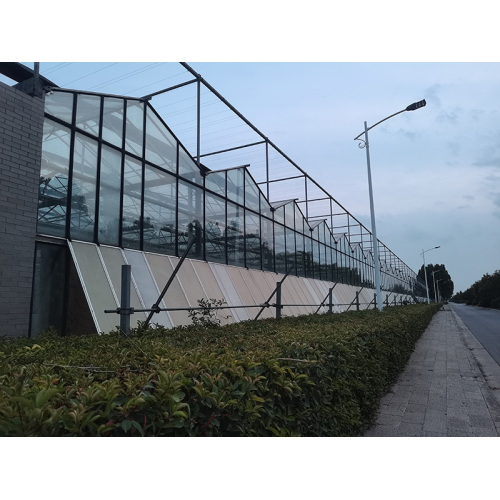

The Side Tilting Window System is a side elevation ventilation solution compatible with multi-span film, polycarbonate, and glass greenhouses. Designed specifically for air circulation in the middle and lower sections of greenhouses, it consists of aluminum alloy frames, transparent polycarbonate fans, gear and rack drive mechanisms, and electric control components. The system uses a side-tilting opening design, with windows flipping outward from 0° to 70°. As reliable Greenhouse Drive System Components, the gear and rack parts ensure smooth, adjustable operation. The anodized aluminum frames function as durable Durable Greenhouse Mechanical Parts that withstand humid and dusty environments. The system is a versatile Agricultural Greenhouse Drive Accessories solution that works in coordination with top window systems to create a complete three-dimensional ventilation strategy.

Technical Specifications

• Transmission Type Gear and rack drive mechanism with electric control components
• Opening Range Windows flip outward from 0° to 70° for adjustable ventilation
• Control Options Supports single-window independent control or multi-window linked operation
• Frame Material Aluminum alloy with anodized anti-corrosion treatment
• Sealing System Equipped with sealing strips for rain and dust protection when closed
• Applications Multi-span film, polycarbonate, and glass greenhouses for fruits, vegetables, flowers, and seedlings

Key Features & Advantages

• Enhanced Three-Dimensional Ventilation When operated in coordination with top window systems, the side tilting windows create a "bottom intake and top exhaust" three-dimensional convection channel. This allows for rapid removal of excess heat and moisture from the greenhouse, reducing the incidence of crop diseases.
• Adjustable Ventilation Control The side-tilting design allows windows to flip outward from 0° to 70°, providing adjustable ventilation rates to meet different environmental conditions and crop needs. The system supports both single-window independent control and multi-window linked operation.
• Durable Corrosion-Resistant Construction The aluminum alloy frames undergo anodized anti-corrosion treatment, enabling them to withstand the high-humidity, dusty environment inside greenhouses. The sealing strips provide effective rain and dust protection when the windows are closed.
• Versatile Compatibility The system is designed to work with various greenhouse types, including multi-span film, polycarbonate, and glass greenhouses, making it adaptable to different construction configurations and growing needs.
• Space-Saving Design The side-tilting opening design eliminates the need for large external opening areas, allowing for more efficient use of the greenhouse footprint and maximizing the usable cultivation space.
• Scalable for Various Operations The system is suitable for diverse agricultural applications, including fruit and vegetable cultivation, flower breeding, and seedling production, making it a flexible solution for different greenhouse operations.

Step-by-Step Installation & Operation Guide

1. Greenhouse Consultation & Design Discuss greenhouse specifications, planting layout, and ventilation requirements to determine the optimal system configuration and window placement.
2. Component Preparation Prepare the aluminum alloy frames, transparent polycarbonate fans, gear and rack drive mechanisms, and electric control components according to the system design.

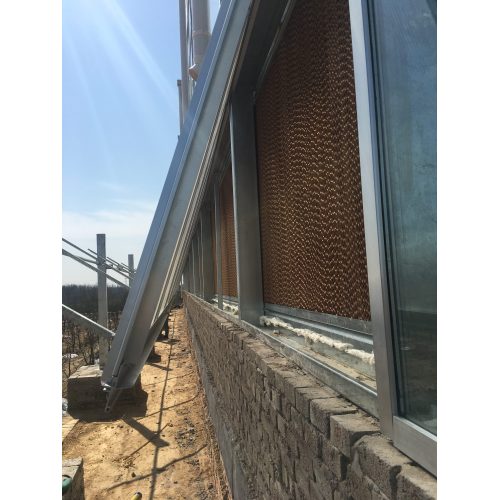

3. Frame Installation Mount the aluminum alloy window frames on the greenhouse side elevation, ensuring proper alignment and structural integrity.

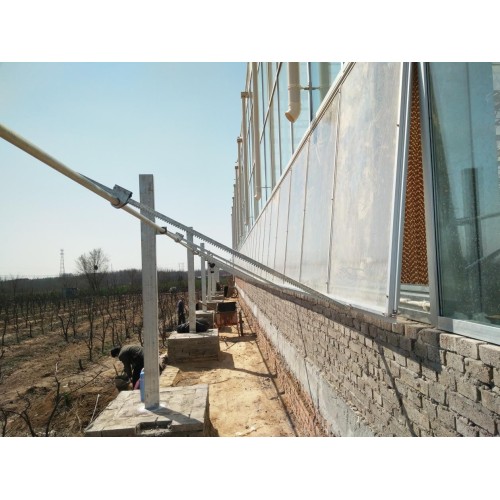

4. Drive System Setup Install the gear and rack drive mechanisms as core Greenhouse Gear and Rack Parts, connecting them to the window fans for smooth side-tilting operation.
5. Control Configuration Set up the electric control components, configuring the single-window independent control or multi-window linked operation functions to meet specific ventilation needs.
6. System Calibration & Testing Calibrate the complete system to ensure proper operation, testing the window movement and control functions under various conditions to verify performance.

Application Scenarios

• Multi-span commercial greenhouses requiring comprehensive three-dimensional ventilation strategies
• Fruit and vegetable cultivation operations needing effective heat and moisture control
• Flower breeding facilities sensitive to high humidity and temperature fluctuations
• Seedling production bases requiring stable, controlled growing conditions
• Greenhouse projects prioritizing space optimization and efficient land use

Customer Benefits

• Improved Crop Health and Yield The enhanced three-dimensional ventilation helps maintain optimal growing conditions, reducing the risk of disease caused by excess heat and moisture, resulting in healthier plants and higher yields.
• Flexible Ventilation Control The adjustable opening range and multiple control options allow for precise control of ventilation rates, enabling the system to adapt to changing environmental conditions and diverse crop needs.
• Long-Term Durability and Low Maintenance The anodized aluminum frames and sealing system ensure reliable performance in humid, dusty environments with minimal maintenance requirements, reducing operational costs over the long term.
• Enhanced Operational Efficiency The system works in coordination with top window systems to create a complete ventilation strategy, improving Overall Greenhouse efficiency and reducing the need for mechanical cooling systems.
• Versatile System Compatibility The system is compatible with various greenhouse construction types, making it a flexible solution that can adapt to different agricultural operations and future expansions.
• Space-Saving Design The side-tilting opening design allows for more efficient use of the greenhouse footprint, maximizing the usable cultivation area without sacrificing ventilation capabilities.

Certifications & Compliance

This Side Tilting Window System meets international agricultural equipment standards, with the gear and rack components complying with mechanical safety and performance requirements. The anodized aluminum frames meet industry standards for durability and corrosion resistance. As specialized Agricultural Greenhouse Drive Accessories, the system is built to provide reliable ventilation control for modern greenhouse operations worldwide.

Customization Options

• Custom system configurations based on specific greenhouse size and layout requirements
• Specialized control modules with advanced features for specific ventilation needs or climate conditions
• Enhanced gear and rack systems for large-scale or heavy-duty applications
• Integration options with existing smart greenhouse management systems
• Modular designs that allow for expansion or modification of the ventilation system

Production Process & Quality Control

Each component of the Side Tilting Window System undergoes strict quality control during production. The aluminum alloy frames are precision manufactured and anodized for durability and corrosion resistance. The gear and rack drive mechanisms are calibrated for smooth, efficient operation. The electric control components are tested for reliability and functionality before the complete system is assembled and delivered.

Customer Testimonials

"The side tilting window system has been a valuable addition to our multi-span greenhouse. The three-dimensional ventilation it provides, in coordination with our top windows, has significantly improved our crop health and reduced disease issues." — Commercial Greenhouse Operator

"As reliable Greenhouse Drive System Components, the gear and rack mechanisms have provided smooth, consistent operation. The adjustable opening range allows us to precisely control ventilation rates to meet our crops' changing needs." — Agricultural Project Manager

"The system's durability in our humid, dusty environment has been impressive. The anodized aluminum frames and sealing system have kept our facility protected from the elements with minimal maintenance required." — Large-Scale Grower

FAQ

Q: How does the system complement top window systems?

A: When operated in coordination with top window systems, the side tilting windows create a "bottom intake and top exhaust" three-dimensional convection channel. This allows for rapid removal of excess heat and moisture from the greenhouse, reducing the incidence of crop diseases.

Q: What makes the system durable in humid and dusty environments?

A: The aluminum alloy frames undergo anodized anti-corrosion treatment, enabling them to withstand the high-humidity, dusty environment inside greenhouses. The sealing strips provide effective rain and dust protection when the windows are closed.

Q: Can the system be controlled individually or linked together?

A: Yes, the system supports both single-window independent control and multi-window linked operation, providing flexible control options to meet different environmental conditions and crop needs.

Q: Is the system compatible with different types of greenhouses?

A: Yes, the system is designed to work with various greenhouse construction types, including multi-span film, polycarbonate, and glass greenhouses, making it adaptable to different agricultural operations and growing needs.
